Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » January 29th, 2011, 11:32 pm

Here is a pic or two of my dreams. Thanks to Frank, thanks for the hookup man.

This is going to be a slow build as I want everything to be perfect. Its gonna have a stumps clone charcoal chute and firebox for heat delivery, a diffuser plate and also a grease catcher/drain. Its already in my trailer but not alot will happen to it until spring temps get here.

Stick with me on this one guys, it'll be a awesome build when its done.





Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
rlmax02
Expert
Expert
Posts: 418
Joined: January 23rd, 2011, 1:14 pm
Title: Member
BBQ Comp Team Name: JUST BUSTED BBQ

Re: Stumps Clone Chute Built onto a Freezer

Post by rlmax02 » January 30th, 2011, 5:43 pm

Oh man I saw a video of another build like this one. I cant wait to see the progress on this. cool deal tom


REMEMBER....WHEREVER YOU GO...THERE YOU ARE.

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 4th, 2011, 1:06 am

Here is where I am at for the design on my firebox/chute. 48" is going to be to tall but its a starting point, but its time to get some sleep for tonight.



Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 5th, 2011, 12:03 am

I did a bit more drawing tonight, I think I have hairs falling out after this one. Anyways here is the latest.



Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
Frank_Cox
Site Admin
Site Admin
Posts: 6994
Joined: January 17th, 2011, 6:30 pm
Title: OB1
BBQ Comp Team Name: Team SmokerBuilder- Competition BBQ Team
KCBS Cert. BBQ Judge
Location: Missouri
Contact:

Re: Stumps Clone Chute Built onto a Freezer

Post by Frank_Cox » February 5th, 2011, 12:44 am

thumbs up! that drawing looks killer man! so far ir looks like it will work just fine.


Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 5th, 2011, 10:52 pm

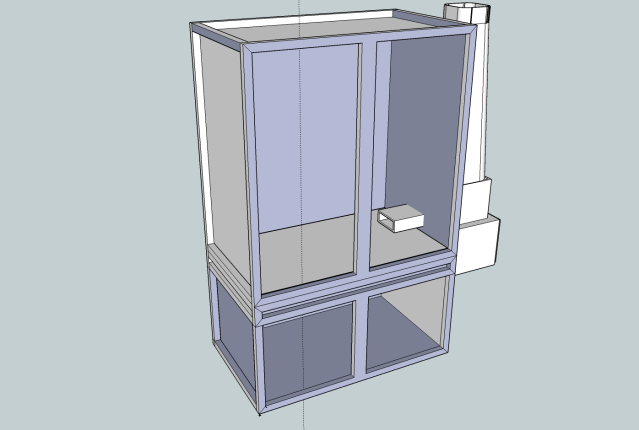

Here is what I am thinking.
This is going to be smoker on top and storage on the bottom with 6 inchs of insulation between the top and bottom. Its actually starting to look like a backwoods just a little bit.

The looks will change here in a short time when I add the chute to my drawing.



Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 5th, 2011, 11:07 pm

Well what do you all think, is it a monster waiting to come out?



Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
rlmax02
Expert
Expert
Posts: 418
Joined: January 23rd, 2011, 1:14 pm
Title: Member
BBQ Comp Team Name: JUST BUSTED BBQ

Re: Stumps Clone Chute Built onto a Freezer

Post by rlmax02 » February 5th, 2011, 11:40 pm

let me tell you that thing is gonna be awesome. what program do you use for design?


REMEMBER....WHEREVER YOU GO...THERE YOU ARE.

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 6th, 2011, 12:30 am

Thank You for the encouraging words, I sure hope I don't stress out to bad before its built.

I am using google sketch up 8. It isnt bad, just a little different.
When I made the drawings for my bender brake I was able to save them as dwg or dxf files so they could be read in the other cad programs but I can't figure out for the life of me how I did it.

I went back in and scaled my drawings to shrink down the front to back measurement, and also the height of the chute.
Here is a couple more shots that may clear up the way the fire works.

Right above the door and right below the rectangle tube entering the chamber, there will be a charcoal grate made from 1/2" round stock.

I am thinking around 4 feetish wide not counting the firebox by 29 inchish deep and about 6 feet tall.





Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
Tom_Heath
Founder
Founder
Posts: 3390
Joined: January 17th, 2011, 10:36 pm
Title: TortillaTom
BBQ Comp Team Name: SmokerBuilder
Location: Independence Mo

Re: Stumps Clone Chute Built onto a Freezer

Post by Tom_Heath » February 6th, 2011, 2:49 am

Allright.....I got all excited getting the pics into the last post and somehow I had a brain fart and didn't save my work. Doouuughhhhh....

I had a SOS moment I guess. And incase you all didn't know SOS translates to Stuck On Stupid. But I went back into the program and redid everything. The chute is resized, the diffuser plate ad drain is in, and the grate is in the firebox. Shezzzzz all that work and I haven't even started yet.




BTW I am trying a new pic setting, Please let me know if any of my stuff is to wide and making you scroll side to side.
Thanks.


Click here : How to Upload Pics (Video) | Click here : Are you on FaceBook? |
--->Click here : Need plans for your build? OR Message me at ---->>> https://m.me/SmokerPlans
--->Are you interested in building smokers for profit?
Click here : Shoot me a PM to learn about a new opportunity launching soon!

User avatar
rlmax02
Expert
Expert
Posts: 418
Joined: January 23rd, 2011, 1:14 pm
Title: Member
BBQ Comp Team Name: JUST BUSTED BBQ

Re: Stumps Clone Chute Built onto a Freezer

Post by rlmax02 » February 6th, 2011, 4:03 pm

Tom this just looks awesome. cant wait to see your progress..


REMEMBER....WHEREVER YOU GO...THERE YOU ARE.

want2smoke
Newbie
Newbie
Posts: 1
Joined: February 1st, 2011, 5:12 pm

Stumps Clone Chute Built onto a Freezer

Post by want2smoke » February 7th, 2011, 12:04 am

Under further investagation I had to change up the size of the firebox just a bit. It seems I was closer to building a forge/potery kiln instead of a smoker. LOL Opps.

I also added a diffuser plate below the drip tray.

I hope you all arn't to dissapointed but I think I am going to build this from scratch. :o
The more I look at the freezer, the more I want to put the shelves in it and use it for storage on the trailer. I'm thinkin it will make one heck of a dry box. Shouldn't be no critters getting in there either. And besides that, when I open up the trailer at a competition everyone is gonna say WOW look at that. BTW.. I can't think of a comp I have attended that it didn't rain or snow at some point during the event.

I think I will open up the front where the comp deck was and make stainless doors and use that for storage also. The stuff that won't hurt if it gets wet. So I think between the storage there and the storage under the smoker, I shouldn't need any more. I can leave everything else open for work/party space.




User avatar
rlmax02
Expert
Expert
Posts: 418
Joined: January 23rd, 2011, 1:14 pm
Title: Member
BBQ Comp Team Name: JUST BUSTED BBQ

Re: Stumps Clone Chute Built onto a Freezer

Post by rlmax02 » February 7th, 2011, 9:03 am

scratch built sounds good 2 tom. quite a project. no doubt youll get it done tho!


REMEMBER....WHEREVER YOU GO...THERE YOU ARE.
